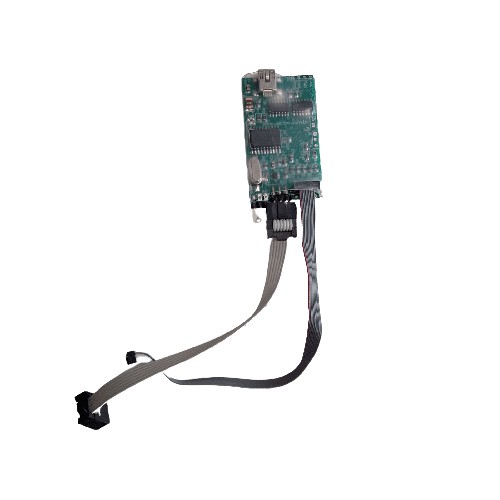

Gravador Usbdm Freescale JS

Gravador para ARM CortexM Freescale Kinets com interface ARM-SWD (HCS08, HCS12 e ARM)

• Esta é uma versão do projeto USBDM_SWD_SER_JS16CWJ.
• Alimenta a placa a ser gravada, seleção 3,3V ou 5V.
• Ao conectar o gravador na USB surge uma porta serial virtual independente do gravador (simultâneo) que pode ser usar para depuração através de "printf" e terminal serial, extremamente simples, é só conectar o Tx e Rx de sua placa no Tx e Rx do gravador e pode mandar e receber dados via serial.
• Proteção contra curto circuito na placa a ser gravada
• Compatível com Windows 7, Windows 10, Windows xp
• Acompanha cabo 10Vias 2x5 Socket - Socket 1.27mm IDC (SWD)
• Não acompanha cabo USB
• Link para o Software

Compatível com Chips da familia 8bits HCS08

MC9S08AC8, MC9S08AC16, MC9S08AC32, MC9S08AC48, MC9S08AC60, MC9S08AC96, MC9S08AC128, S9S08AW8A, S9S08AW16A, MC9S08AW16, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08DE32, MC9S08DE60, MC9S08DN16, MC9S08DN32, MC9S08DN48, MC9S08DN60, MC9S08DV16, MC9S08DV32, MC9S08DV48, MC9S08DV60, MC9S08DV96, MC9S08DV128, MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08DZ96, MC9S08DZ128, MC9S08EL16, MC9S08EL32, MC9S08EN16, MC9S08EN32, MC9S08FL8, MC9S08FL16, MC9S08GB32, MC9S08GB32A, MC9S08GB60, MC9S08GB60A, MC9S08GT8A, MC9S08GT16, MC9S08GT16A, MC9S08GT32, MC9S08GT32A, MC9S08GT60, MC9S08GT60A, MC9S08GW32, MC9S08GW64, MC9S08JE64, MC9S08JE128, MC9S08JM8, MC9S08JM16, MC9S08JM32, MC9S08JM60, MC9S08JS8, MC9S08JS16, MC9S08LC36, MC9S08LC60, MC9S08LG16, MC9S08LG32, MC9S08LH36, MC9S08LH64, MC9S08LL8, MC9S08LL16, MC9S08LL36, MC9S08LL64, MC9S08MM32, MC9S08MM32A, MC9S08MM64, MC9S08MM128, MC9S08MP12, MC9S08MP16, MC9S08PA4, MC9S08PA8, MC9S08PA16, MC9S08PA32, MC9S08PA60, MC9S08PL8, MC9S08PL16, MC9S08PL32, MC9S08PL60, MC9S08PT8, MC9S08PT16, MC9S08PT32, MC9S08PT60, MC9S08QA2, MC9S08QA4, MC9S08QB4, MC9S08QB8, MC9S08QD2, MC9S08QD4, MC9S08QE4, MC9S08QE8, MC9S08QE16, MC9S08QE32, MC9S08QE64, MC9S08QE96, MC9S08QE128, MC9S08QG4, MC9S08QG8, MC9S08RC8, MC9S08RC16, MC9S08RC32, MC9S08RC60, MC9S08RD8, MC9S08RD16, MC9S08RD32, MC9S08RD60, MC9S08RE8, MC9S08RE16, MC9S08RE32, MC9S08RE60, MC9S08RG32, MC9S08RG60, MC9S08SC4, MC9S08SE4, MC9S08SE8, MC9S08SF4, MC9S08SG4, MC9S08SG8, MC9S08SG16, MC9S08SG32, MC9S08SH4, MC9S08SH8, MC9S08SH16, MC9S08SH32, MC9S08SL8, MC9S08SL16, MC9S08SV8, MC9S08SV16, MPXY8300, MC13211, MC13212, MC13213, MC13233C.

Compatível com Chips da familia HCS12

MC9S12A32, MC9S12A64, MC9S12A32, MC9S12A128, MC9S12A256, MC9S12A512, MC9S12B128, MC9S12C32, MC9S12C64, MC9S12C96, MC9S12C128, MC9S12D32, MC9S12D64, MC9S12DB128, MC9S12DB128B, MC9S12DG128, MC9S12DG128B, MC9S12DG256, MC9S12DG256B, MC9S12DG256C, MC9S12DJ64, MC9S12DJ128, MC9S12DJ128B, MC9S12DJ256, MC9S12DJ256B, MC9S12DJ256C, MC9S12DJ512, MC9S12DP256B, MC9S12DP512, MC9S12DT128, MC9S12DT128B, MC9S12DT256, MC9S12DT256B, MC9S12DT256C, MC9S12DT512, MC9S12E32, MC9S12E64, MC9S12E128, MC9S12E256, MC9S12G128, MC9S12GC16, MC9S12GC32, MC9S12GC64, MC9S12GC96, MC9S12GC128, MC9S12HA32, MC9S12HA48, MC9S12HA64, MC9S12HY32, MC9S12HY48, MC9S12HY64, MC9S12P32, MC9S12P64, MC9S12P96, MC9S12P128, MC9S12NE64, MC9S12Q32, MC9S12Q64, MC9S12Q96, MC9S12Q128, MC9S12UF32, MC9S12XA_B_D-linear, MC9S12XA128, MC9S12XA256, MC9S12XA512, MC9S12XB128, MC9S12XB256, MC9S12XD64, MC9S12XD128, MC9S12XD256, MC9S12XDG128, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512, MC9S12XS64, MC9S12XS64-Linear, MC9S12XS128, MC9S12XS128-Linear, MC9S12XS256, MC9S12XS256-Linear.

Compatível com Chips da familia ARM

MKE02Z16M2, MKE02Z32M2, MKE02Z64M2, MKL02Z8M4, MKL02Z16M4, MKL02Z32M4, MKL04Z8M4, MKL04Z16M4, MKL04Z32M, MKL05Z8M4, MKL05Z16M4, MKL05Z32M4, MKL14Z32M4, MKL14Z64M4, MKL15Z32M4, MKL15Z64M4, MKL15Z128M4, MKL16Z32M4, MKL16Z64M4, MKL16Z128M4, MKL16Z256M4, MKL24Z32M4, MKL24Z64M4, MKL25Z32M4, MKL25Z64M4,MKL25Z128M4, MKL26Z32M4, MKL26Z64M4, MKL26Z128M4, MKL26Z256M4, MKL34Z64M4, MKL36Z64M4, MKL36Z128M4, MKL36Z256M4, MKL46Z128M4, MKL46Z256M4,, MK10DX256M7, MK10DN512M10, MK10DN512ZM10, MK10DX128M10, MK10DX128ZM10, MK10DX256M10, MK10DX256ZM10, MK10FX512M12, MK10FN1M0M12, MK20DN32M5, MK20DX32M5, MK20DN64M5, MK20DX64M5, MK20DN128M5, MK20DX128M5, MK20DX64M7, MK20DX128M7, MK20DX256M7, MK20DX128M10, MK20DX128ZM10, MK20DX256M10, MK20DX256ZM10, MK20DN512M10, MK20DN512ZM10, MK20FX512M12, MK20FN1M0M12, MK21DX128M5, MK21DX256M5, MK21DX512M5, MK21FX512M12, MK21FN1M0M12, MK22DX128M5, MK22DX256M5, MK22DN512M5, MK22FX512M12, MK22FN1M0M12, MK30DX128M7, MK30DX256M7, MK30DX64M10, MK30DX128M10, MK30DX128ZM10, MK30Dx256M10, MK30DX256ZM10, MK30DN512ZM10, MK40DX64M7, MK40DX128M7, MK40DX256M7, MK40DX64M10, MK40DX128M10, MK40DX128ZM10, MK40DX256M10, MK40DX256ZM10, MK40DN512ZM10, MK50DX128M7, MK50DX256M7, MK50DX128M10, MK50DX256M10, MK50DX256ZM10, MK50DN512M10, MK50DN512ZM10, MK51DX128M7, MK51DX256M7, MK51DX128M10, MK51DN256M10, MK51DN256ZM10, MK51DX256M10, MK51DX256ZM10, MK51DN512M10, MK51DN512ZM10, MK52DN512ZM10, MK53DX256ZM10, MK53DN512ZM10, MK60DN256ZM10, MK60DX256ZM10, , MK60DN512ZM10, MK60FX512M12, MK60FN1M0M12, MK61FX512M12, MK61FN1M0M12, MK70FX512M12, MK70FN1M0M12, MK60FX512M15, MK61FX512M15, MK70FX512M15, MK60FN1M0M15, MK61FN1M0M15, MK70FN1M0M15, PK10N512, PK10X128, PK10X256, PK20N512, PK20X128, PK20X256, PK30N512, PK30X128, PK30X256, PK40N512, PK40X128, PK40X256, PK60N256, PK60N512, STM32F100C8, STM32F100xx-medium, STM32F100xx-high, STM32F103xx-low, STM32F103xx-medium, STM32F103xx-high, STM32F103xx-XL, STM32F103xx-Connectivity, STM32F103RBT6, LPC1343.
